India’s Engineering-Led External Lightning Protection Systems — Designed for Real-World Performance
Every year, lightning strikes damage critical infrastructure, halt operations, and put lives at risk. With India experiencing one of the highest lightning flash densities in the world, standard protection isn’t enough.
ARK Make by DFMHUB delivers manufacturer-engineered External Lightning Protection Systems built specifically for Indian soil conditions, tropical climates, and industrial-grade performance demands.
✓ IEC 62305 & IS 2309 Compliant
✓ Designed & Manufactured in India
✓ Proven in 500+ Industrial Installations
✓ Complete System: Air Termination → Down Conductors → Earthing
REQUEST: Technical Consultation/Download Product Catalogue
Why External Lightning Protection Isn’t Optional—It’s Essential?
₹2,500+ Crore — estimated annual lightning damage to Indian infrastructure
2,000+ deaths annually in India from lightning strikes
72 hours — Average downtime for an unprotected facility after a strike
The Reality for Your Facility:
- Solar Power Plants: A single strike can destroy inverters, panels, and monitoring systems worth lakhs
- Industrial Facilities: Production downtime, equipment damage, worker safety incidents
- Commercial Buildings: Fire hazards, electronic system failures, liability exposure
- Oil & Gas / Substations: Catastrophic risk to critical infrastructure and personnel
The question isn’t whether lightning will strike. It’s whether you’ll be ready when it does.
ARK Make External Lightning Protection System –A Complete External Lightning Protection System — Engineered from Ground to Sky
Unlike traders who assemble mismatched components, ARK Make systems are designed as integrated solutions. Every component—from air terminals to earthing electrodes—is engineered for electrical continuity, mechanical durability, and long-term corrosion resistance.
- System Architecture (IEC 62305 Based)
SYSTEM COMPONENTS
Precision-Engineered Components for Complete Protection
1. Air Termination Systems
| Type | Technology | Best For | Coverage |
| ESE Air Terminals | Early Streamer Emission | Large open areas, solar parks | Up to 107m radius (LPL I) |
| Conventional Rods | Passive Franklin Rod | Buildings, industrial structures | Rolling sphere/mesh method |
| Mesh Systems | Conductor grid network | Flat roofs, warehouses | Complete surface protection |
Standards Met: IEC 62305-3, NFC 17-102, IS 2309
2. Down Conductor Systems
The critical link between interception and dissipation.
| Product | Material | Application | Compliance |

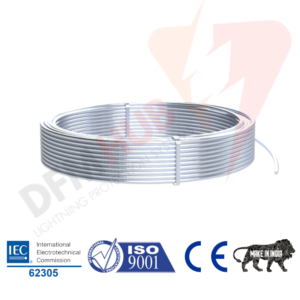

| 8mm Aluminum Round Conductor | High-purity Al | Standard buildings, solar installations | IEC 62561 |
| 10mm Aluminum Round Conductor | High-purity Al | High-current applications, industrial | IEC 62561 |
| Strip Conductors | Electrolytic Cu and AL | Corrosive environments, high conductivity needs | IEC 62561 |
Key Specifications:
- Electrical Resistivity: Tested per IEC 62561
- Tensile Strength: Certified for mechanical stress
- Corrosion Resistance: Designed for 25+ year service life
3. Conductor Fixing & Mounting Systems
Secure installation. Zero compromise.
| Component | Material | Application | Price |
| Parapet Holder Clamps | Polyamide PA6 / SS | Terrace edges, parapet walls | on request |

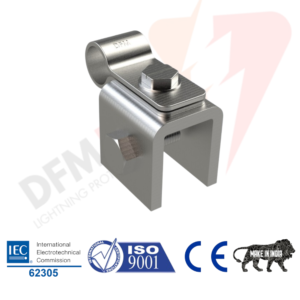

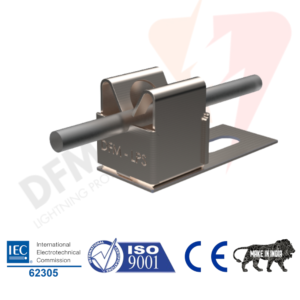

| Metal Roof Conductor Holders | Stainless Steel | Industrial metal roofing | on request |
| Standing Seam Roof Clamps | SS 304 | Standing seam metal roofs | On request |
| Flat Roof Holders (Concrete) | PA6 + Concrete | RCC flat roofs | On request |
| Rod Holder Clamps | SS | Wall-mounted conductors | On request |
| Strip Holder Clamps | SS | Copper strip fixing | On request |
4. Bonding & Connection Systems
Electrical continuity is non-negotiable.
| Component | Function | Material Options |

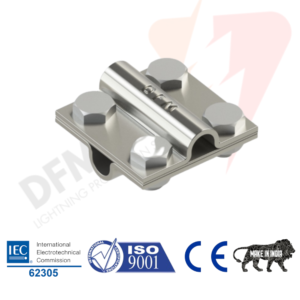

| Cross Connector Clamps | T and cross connections | Cu / Al / SS |
| Vario Quick Connectors | Rapid parallel/T connections | SS |
| Diagonal Clamps | Angular connections | SS |
| Rebar Bonding Clamps | Concrete reinforcement bonding | SS |

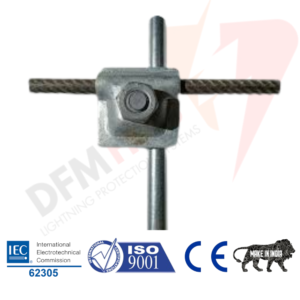

| Test Joints | Inspection & resistance testing | Cu / Al |
All connectors tested for:
- 100kA impulse current withstand
- Contact resistance < 1mΩ
- Mechanical pull-out strength
- Salt spray analysis/ Environment Test
5. Earthing Systems
Where the current meets the earth.
| Product | Specification | Application |
| Copper Bonded Rods | 250μm Cu coating, 14.2mm dia | Standard earthing |
| Earth Enhancement Compound | Low resistivity backfill | High-resistivity soil |
| Inspection Pits | HDPE/Concrete | Maintenance access |
| Earth Bars | Copper | Equipotential bonding |
DESIGN METHODOLOGY –Engineering-First Approach — Not Guesswork
Our IEC 62305 Risk Assessment Process considered for ARK-Make External Lightning Protection system products
Step 1: Site Data Collection
- Structure dimensions & materials
- Lightning flash density (Ng) for location
- Soil resistivity measurement
- Occupancy type & loss categories
Step 2: Risk Calculation (IEC 62305-2)
- R1: Risk of loss of human life
- R2: Risk of loss of service to public
- R3: Risk of loss of cultural heritage
- R4: Risk of loss of economic value
Step 3: Protection Level Determination
- LPL I (highest): R > 10⁻⁵
- LPL II: 10⁻⁵ > R > 10⁻⁶
- LPL III: 10⁻⁶ > R > 10⁻⁷
- LPL IV: R < 10⁻⁷
Step 4: Design Method Selection
- Rolling Sphere Method (RSM)
- Protection Angle Method
- Mesh Method
- Or combination based on structure
Step 5: Deliverables
✓ Risk Assessment Report
✓ Protection Level Recommendation
✓ Layout Drawings (Air termination, Down conductors, Earthing)
✓ Bill of Quantities
✓ Installation Guidelines
✓ Compliance Certificate Template
STANDARDS & COMPLIANCE
Built to International and Indian Standards — No Compromises
| Standard | Scope | ARK Make Compliance |
| IEC 62305-1 | General principles | ✓ Full |
| IEC 62305-2 | Risk management | ✓ Full |
| IEC 62305-3 | Physical damage protection | ✓ Full |
| IEC 62305-4 | Electrical & electronic systems | ✓ Full |
| IEC 62561 | LPS components | ✓ Full |
| IS 2309 | Indian Standard for LPS | ✓ Full |
| NFC 17-102 | ESE standard (where specified) | ✓ Available |
Documentation Provided:
- Material Test Certificates
- Type Test Reports
- Compliance Declarations
- Installation & Maintenance Manuals
- Warranty Certificates
Application and Industries with proven performance across Critical Sectors
Rajasthan | Gujarat | Maharashtra
ARK External Lightning Protection Systems Accessories used in large solar power plants and Warehouses and renewable energy projects in high lightning-density regions.
Tamil Nadu | Karnataka | Telangana
ARK Franklin Rod Air terminals & down conductor systems for industrial factories, Metro Projects, and warehouses, ensuring structural and operational safety.
Bengaluru | Hyderabad | Pune | Chennai | Gurugram
ARK External Lightning Protection used in commercial buildings, IT parks, and data centers, with façade-safe and aesthetically integrated installations.
WHY CHOOSE ARK MAKE BY DFMHUB
The Manufacturer Difference
| Factor | Trading Companies | ARK Make by DFMHUB |
| Product Source | Multiple vendors, mixed quality | Single-source manufacturing |
| Design Capability | Limited/outsourced | In-house IEC 62305 experts |
| Quality Control | Inconsistent | Raw material → Finished product traceability |
| Customization | Minimal | Full custom engineering |
| Technical Support | Sales-focused | Engineering-focused |
| Pricing | Trading margins added | Direct manufacturer pricing |
| After-Sales | Limited accountability | Long-term partnership |
Our Commitments:
✓ Engineering-Led, Not Sales-Led Every inquiry is reviewed by our technical team. We design systems, not push products.
✓ Made for India Soil resistivity ranges from 10 to 10,000 Ω-m across India. Monsoons, coastal salinity, extreme temperatures. ARK Make systems are designed for these conditions.
✓ Complete System Responsibility Air terminal to earth electrode — one manufacturer, one warranty, one point of contact.
✓ Transparent Documentation Every component comes with test certificates. Every design comes with calculation backup.
✓ Installation Support Detailed installation guidelines. On-site technical support available for complex projects.
TECHNICAL SUPPORT & SERVICES
Beyond Products — Complete Project Support
Design Services of Lightning Protection System
- Lightning Risk Assessment (IEC 62305-2)
- System Design & Layout Drawings
- Bill of Quantities & Specifications
- Third-party design review
Supply of External Lightning Protection System
- Pan-India delivery network
- Export packaging available
- Bulk order pricing
- JIT delivery for projects
Installation Support
- Installation methodology documents
- On-site technical supervision (on request)
- Contractor training programs
- Quality audit checklists
Post-Installation
- Testing & commissioning guidelines
- Annual inspection protocols
- Maintenance schedules
- Replacement parts supply
For More Information – Talk to Our Technical Team
Get Started -Request Technical Consultation & Quotation
Whether you need a complete lightning protection system design or specific components for your project, our engineering team is ready to help.
For Project Enquiries:
Tell us about your project:
- Project type (Solar/Industrial/Commercial/Infrastructure)
- Location
- Structure details (area, height, material)
- Existing drawings (if available)
- Timeline
Submit Project Enquiry Form
Quality Control, Testing & Manufacturing Process
DFMHUB follows strict manufacturing quality controls including raw material
traceability, dimensional checks, conductivity verification, and corrosion
resistance evaluation.
Products are supplied with technical datasheets and
installation guidelines.
Why Choose ARK Make by DFMHUB?
- Manufacturer-led engineering expertise
- IEC and IS compliant designs
- Proven experience in real-world installations
- Long-term technical support and documentation
- Systems designed for Indian soil and climate conditions
