10mm Copper Bonded Conductor for Structural Lightning Protection | ARK Make by DFMHUB India.
A 10mm copper bonded conductor is a critical current-carrying component used in structural lightning protection systems (LPS). It safely conducts lightning current from the air termination network through down conductors into the earthing system, minimizing thermal, mechanical, and electrical damage to structures.
The 10mm Copper Bonded Conductor – ARK Make by DFMHUB is specifically engineered for Indian climatic, soil, and regulatory conditions, offering superior conductivity, long-term corrosion resistance, and compliance with IEC 62305 lightning protection standards.
This page provides a complete engineering, performance, and compliance-focused overview—written for consultants, EPC contractors, developers, and electrical engineers—with zero marketing fluff.
Why 10mm Copper Bonded Conductor Is Critical for Structural Lightning Protection
A 10mm copper bonded conductor is a steel or copper core conductor molecularly bonded with high-purity copper, designed to safely carry lightning impulse currents from strike points to earth without melting, cracking, or corroding.
Role in a Structural Lightning Protection System
Forms the primary down conductor path
Ensures low-impedance current dissipation
Prevents side flashing and thermal damage
Maintains electrical continuity during high-energy impulses
Why Copper Bonded Conductors Are Preferred in India
India presents unique challenges for lightning protection design:
| Indian Condition | Impact on Conductor Selection |
|---|---|
| High soil resistivity (rocky, dry zones) | Requires high-conductivity conductors |
| Coastal & industrial corrosion | Demands bonded copper over GI |
| Extreme heat cycles (45–50°C) | Needs thermal stability |
| High lightning density regions (East, Central India) | Requires impulse-tested conductors |
The ARK Make 10mm Copper Bonded Conductor is designed to withstand:
Monsoon moisture
Industrial pollution
Coastal salinity
Long-term underground exposure

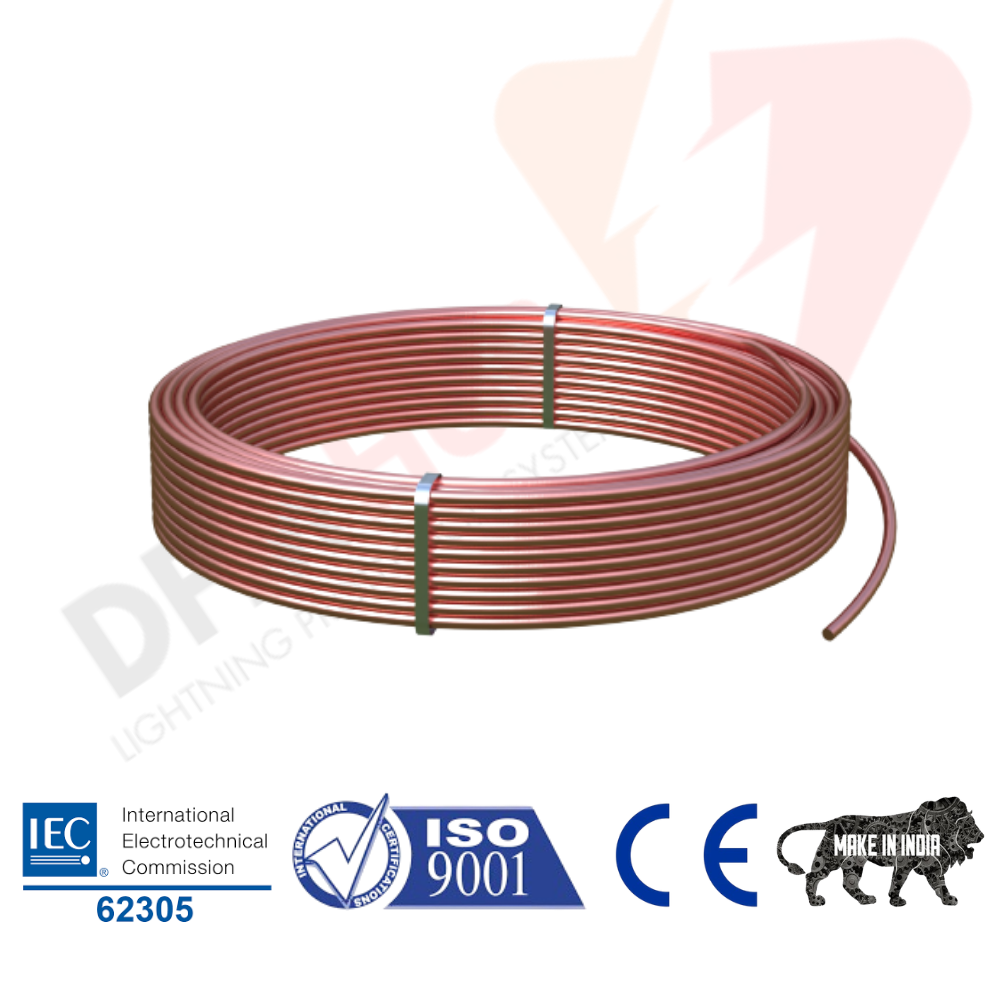

Product Overview: ARK Make 10mm Copper Bonded Conductor
Key Specifications
| Parameter | Value |
|---|---|
| Nominal Diameter | 10 mm |
| Copper Coating Purity | ≥ 99.9% |
| Copper Bond Thickness | Uniform molecular bond |
| Electrical Conductivity | High (low impedance path) |
| Tensile Strength | High (structural routing safe) |
| Application | Structural lightning protection |
| Manufacturing Origin | Designed & manufactured in India |
Engineering Design Methodology (IEC 62305 Based)
Step-by-Step Design Logic
Lightning Risk Assessment
Structure type
Occupancy
Lightning density (Ng)
Down Conductor Sizing
10mm selected for optimal current-carrying capacity
Suitable for LPS Class III & IV (and higher with multiple paths)
Material Selection
Copper bonded preferred over GI due to corrosion resistance
Routing & Fixing
Installed externally or internally
Fixed using ARK-compatible holders and clamps
Termination to Earth
Connected to copper bonded earth electrodes
Ensures system continuity
Why Copper Bonded vs Solid Copper vs GI Conductor
Comparative Engineering Table
| Parameter | Copper Bonded (ARK) | Solid Copper | GI Strip |
|---|---|---|---|
| Cost Efficiency | High | Low | Medium |
| Corrosion Resistance | Excellent | Excellent | Poor |
| Theft Risk | Low | Very High | Low |
| Mechanical Strength | High | Medium | High |
| IEC 62305 Suitability | ✔✔✔ | ✔✔ | ❌ |
| Indian Climate Fit | Excellent | Moderate | Poor |
Manufacturing Technology: ARK Make Advantage
Molecular Bonding Process
Copper is molecularly bonded, not electroplated
No peeling, cracking, or delamination
Uniform thickness across conductor length
Quality Control
Dimensional accuracy checks
Copper thickness testing
Electrical resistance measurement
Visual and mechanical inspection
Testing & Certification
Electrical & Mechanical Testing
| Test Type | Standard Reference |
|---|---|
| Continuity Test | IEC 62305 |
| Tensile Strength | Internal QA + IEC guidelines |
| Copper Adhesion | Peel & impact tests |
| Corrosion Resistance | Accelerated exposure |
Documentation Provided
Test certificates
Product datasheets
Installation guidelines
Compliance declarations
Standards & Compliance Table
| Standard | Compliance |
|---|---|
| IEC 62305 (Lightning Protection) | ✔ |
| IS/IEC Electrical Safety Norms | ✔ |
| EPC & Consultant Specifications | ✔ |
| Government Infrastructure Projects | ✔ |
Industry-Wise Applications in India
1. Commercial Buildings
IT parks in Bengaluru, Hyderabad
Corporate offices in Mumbai, Gurugram
2. Industrial Plants
Manufacturing units in Gujarat, Maharashtra
Refineries and chemical plants
3. Infrastructure Projects
Airports
Metro stations
Data centers
4. Renewable Energy
Solar power plants
Wind turbine structures
Manufacturer vs Trader: Why ARK Make by DFMHUB
| Aspect | ARK Make (Manufacturer) | Local Trader |
|---|---|---|
| Design Engineering | In-house | None |
| Standard Compliance | Documented | Unverified |
| Traceability | Full | Limited |
| Customization | Available | Not possible |
| Technical Support | Yes | No |
Installation Best Practices
Maintain minimum bending radius
Avoid sharp edges or kinks
Ensure direct, straight routing
Use compatible ARK clamps and holders
Maintain separation from power cables
Provide test joints for inspection
Services & Support by DFMHUB
Lightning risk assessment support
System design consultation
BOQ & tender assistance
Installation guidance
Post-installation testing advisory
Frequently Asked Questions (FAQs)
1. Is a 10mm copper bonded conductor sufficient for lightning protection?
Yes. For most structural lightning protection systems in India, 10mm conductors are suitable when designed as per IEC 62305.
2. Can it be used in coastal areas?
Yes. Copper bonded conductors offer superior corrosion resistance compared to GI conductors.
3. How is copper bonded different from copper plated?
Copper bonded involves molecular bonding, ensuring no peeling or corrosion exposure.
4. Is this product compliant with IEC 62305?
Yes. ARK Make conductors are designed in line with IEC 62305 requirements.
5. Can it be used with existing earthing systems?
Yes, provided compatibility and continuity are ensured.
6. What is the lifespan of copper bonded conductors?
Typically 30+ years under proper installation conditions.
7. Is testing documentation provided?
Yes. Product datasheets and test certificates are available.
8. Is this conductor suitable for data centers?
Absolutely. It offers low impedance and high reliability.
9. Does DFMHUB provide design support?
Yes. Engineering and pre-sales technical support are available.
