Parapet Holder for Lightning Protection system – ARK Make by DFMHUB
In modern lightning protection system (LPS) design, the parapet holderfor lightning protection systems plays a mission-critical role in ensuring mechanical stability, electrical continuity, and long-term durability of down conductors routed along building parapet walls. The ARK Make Parapet Holder by DFMHUB is engineered specifically for Indian construction practices, climate conditions, and IEC 62305 lightning protection standards, making it suitable for consultants, EPC contractors, and industrial facility owners seeking technically compliant and site-proven solutions.
Unlike generic clamps or improvised supports, this parapet holder is purpose-built for lightning conductors, ensuring correct spacing, vibration resistance, corrosion protection, and compatibility with copper, GI, aluminium, and copper-bonded conductors widely used across India.
What Is a Parapet Holder?
A parapet holder is a mechanical support accessory used in lightning protection systems to securely fix the down conductor or air termination conductor along parapet walls or rooftop edges, maintaining:
Correct conductor routing
Prescribed separation distances
Mechanical stability under wind load
Electrical continuity during lightning discharge
In IEC 62305-compliant LPS design, conductor fixing accessories such as parapet holders are essential components, not optional hardware.
Why Parapet Holders Are Critical in Indian Buildings
India’s built environment presents unique challenges for lightning protection:
High lightning density zones (Kerala, Odisha, West Bengal, Maharashtra, Telangana)
Extreme UV exposure on rooftops
Heavy monsoon rainfall & humidity
Coastal corrosion environments
Concrete parapets with varying thickness & finishes
The ARK Make Parapet Holder is designed to withstand these real-world Indian site conditions without compromising conductor integrity or safety.

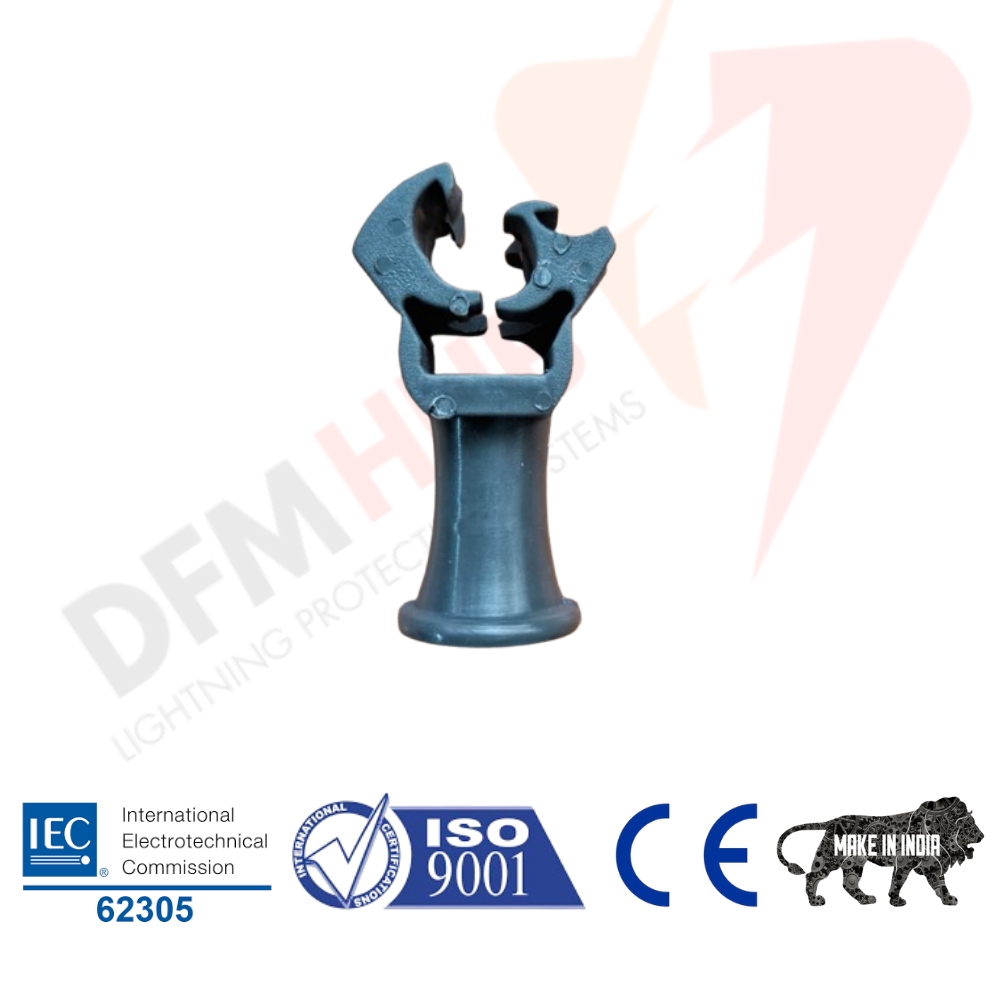

Product Overview – ARK Make Parapet Holder
Key Engineering Objectives
Secure conductor anchoring without damaging parapet structure
Maintain IEC-recommended conductor spacing
Resist corrosion, vibration, and thermal expansion
Enable fast, repeatable installation on Indian rooftops
Component-Wise Breakdown (Engineering View)
| Component | Material Options | Engineering Purpose |
|---|---|---|
| Body / Clamp | Nylon PA6 | Corrosion resistance |
| Conductor | GI / Copper / Aluminium | Ensures firm conductor grip without deformation |
| Fasteners | SS / HDG Bolts & Nuts | Long-term mechanical stability |
| Insulation | UV-stabilized polymer | Prevents surface abrasion |
| Adjustable Jaw | Precision-fabricated | Accommodates parapet thickness variation |
Available Technical Variants
| Parameter | Specification |
|---|---|
| Compatible Conductor Sizes | 8 mm, 10 mm |
| Mounting Type | Clamp-on parapet fixing |
| Height | 50mm Clear Height |
| Finish | Polished |
| Operating Temperature | -10°C to +80°C |
| Installation Location | Rooftop parapet walls |
Engineering Design Methodology (Step-by-Step)
Step 1: Site Assessment
Parapet height, thickness, and surface finish
Wind exposure and building height
Conductor material selection
Step 2: Load & Stress Consideration
Wind-induced vibration analysis
Thermal expansion allowance
Lightning impulse mechanical forces
Step 3: Material Selection
HDG steel for industrial & inland sites
Stainless steel for coastal or chemical plants
Step 4: IEC 62305 Integration
Conductor spacing compliance
Routing alignment with air termination network
Step 5: Installation Validation
Torque-controlled fastening
Visual and mechanical inspection
This structured approach ensures repeatable compliance across Indian EPC projects.
Manufacturing & Quality Control – ARK by DFMHUB
Unlike traders or resellers, DFMHUB manufactures ARK parapet holders in-house, enabling:
Dimensional accuracy
Controlled galvanization thickness
Batch traceability
Custom fabrication for project-specific needs
Quality Checks Include:
Raw material chemical composition verification
Galvanization thickness testing
Mechanical load testing
Fitment trials with actual conductors
Testing & Certifications
| Test Type | Standard / Method |
|---|---|
| Corrosion Resistance | IEC 62561 |
| Mechanical Load Test | Internal QA protocol |
| Dimensional Tolerance | ISO manufacturing norms |
| Visual & Surface Inspection | IEC accessory guidelines |
Standards & Compliance Table
| Standard | Compliance |
|---|---|
| IEC 62305 | ✔ Fully aligned |
| IEC 62561 (Components) | ✔ Compatible |
| ISO 9001 Manufacturing | ✔ Available |
| Indian Climate Suitability | ✔ Designed for India |
Industry-Wise Applications
Infrastructure & Commercial
IT Parks & Data Centers
Airports & Metro Stations
Hospitals & Educational Campuses
Industrial
Manufacturing plants
Oil & Gas terminals
Power plants & substations
Renewable Energy
Solar rooftop installations
Wind monitoring stations
Residential & High-Rise
Apartments & villas
Hotels & mixed-use towers
Manufacturer vs Trader – Critical Comparison
| Aspect | ARK Make by DFMHUB | Generic Trader |
|---|---|---|
| Design Ownership | ✔ In-house | ✖ No |
| IEC 62305 Alignment | ✔ Engineered | ✖ Generic |
| Indian Climate Testing | ✔ Yes | ✖ No |
| Customization | ✔ Project-specific | ✖ Limited |
| Traceability | ✔ Batch-wise | ✖ None |
| Technical Support | ✔ Engineering-backed | ✖ Sales-only |
Why Consultants & EPCs Prefer ARK Parapet Holders
Predictable site performance
Reduced installation errors
Documentation-ready for audits
Consistency across multi-city projects
Services & Support by DFMHUB
Lightning protection design assistance
BOQ & tender support
Custom fabrication drawings
Site installation guidance
As-built documentation support
