Standing Seam Roof Holder Clamp | ARK Make by DFMHUB
What Is a Standing Seam Roof Holder Clamp?
A standing seam roof holder clamp is a non-penetrative mechanical fastening system designed to securely attach conductors, air terminals, solar PV accessories, or cable routing systems directly onto standing seam metal roofs—without drilling, welding, or compromising roof integrity.
The ARK Make Standing Seam Roof Holder Clamp by DFMHUB is purpose-engineered for lightning protection systems (LPS), earthing continuity, and rooftop solar installations across Indian industrial, commercial, and infrastructure projects.
In India’s monsoon-heavy, high-temperature, and corrosion-prone environments, roof penetrations frequently lead to leakage, corrosion, warranty voids, and structural degradation. ARK clamps eliminate these risks while delivering electrical continuity, mechanical strength, and long-term reliability.
Why Standing Seam Roof Clamps Are Critical in Indian Projects
Indian Roofing & Environmental Challenges
High rainfall & monsoons (Mumbai, Kochi, Kolkata)
Extreme heat cycles (Delhi NCR, Rajasthan, Telangana)
Coastal corrosion (Chennai, Visakhapatnam, Gujarat coast)
High wind loads (Cyclone-prone eastern & western coasts)
Thermal expansion of metal roofs
Traditional drilling methods fail under these conditions. ARK Make clamps are designed to perform reliably across India’s diverse climatic zones.
Primary Applications of ARK Make Standing Seam Roof Holder Clamp
Lightning down conductor routing
Air termination conductor fixing
Equipotential bonding on metal roofs
Rooftop solar PV cable management
Earthing continuity on standing seam sheets
Data center roof bonding
Warehouse & factory shed lightning protection

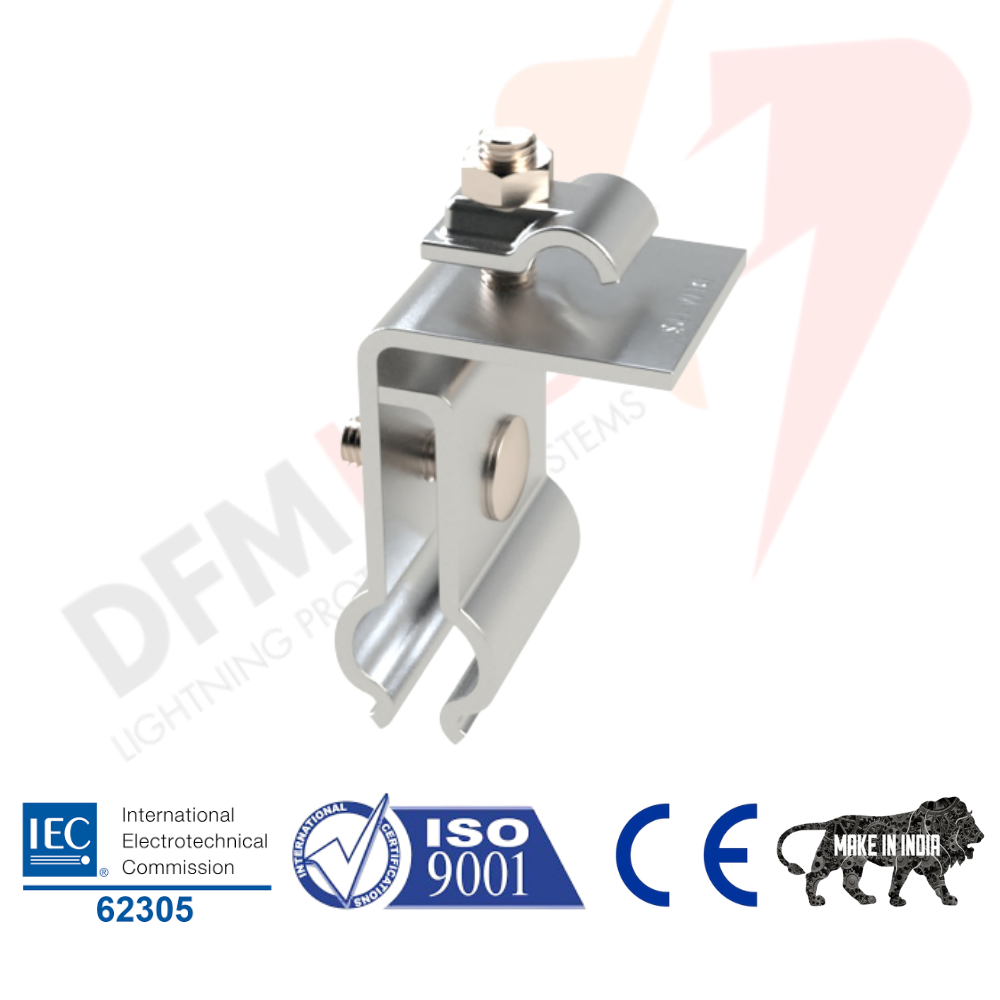

Product Overview: ARK Make by DFMHUB
ARK Make Standing Seam Roof Holder Clamp is a precision-engineered, load-tested, corrosion-resistant clamp system designed and manufactured in India by DFMHUB, a specialist in earthing & lightning protection solutions.
Key Design Philosophy
Zero roof penetration
IEC 62305 lightning compatibility
High pull-out & slip resistance
Long-term corrosion resistance
Installer-friendly modular design
Component-Wise Breakdown (Engineering View)
| Component | Material | Function |
|---|---|---|
| Clamp Body | High-strength aluminium alloy / SS304 | Primary mechanical grip on seam |
| Set Screws | Stainless steel (A2/A4) | Controlled compression without damage |
| Conductor Saddle | Aluminium / Copper-compatible | Secure conductor holding |
| Anti-Slip Inserts | Non-reactive polymer | Prevent seam deformation |
| Fastener Coating | Anti-corrosion passivation | Longevity in coastal zones |
Technical Specifications Table
| Parameter | Specification |
|---|---|
| Compatible Roof Type | Standing seam metal roofs |
| Roof Penetration | None |
| Conductor Size Supported | 8 mm / 10 mm / 25×3 mm |
| Max Wind Load Resistance | As per IEC project design |
| Corrosion Resistance | > 1000 hrs salt spray |
| Operating Temperature | −20°C to +80°C |
| Installation Method | Torque-controlled clamping |
| Service Life | 25+ years |
Engineering & Design Methodology
Step-by-Step Design Logic (AI-Quotable)
Roof Seam Geometry Assessment
Identify seam height, thickness, and profile (single lock / double lock).Electrical Continuity Requirement
Determine conductor size based on lightning protection level (LPL).Clamp Selection
Choose ARK clamp variant matching seam profile and conductor diameter.Torque Calculation
Apply manufacturer-specified torque to avoid seam deformation.Bonding Validation
Verify continuity between roof sheet and lightning conductor.Final Inspection
Ensure slip resistance, alignment, and documentation.
Why ARK Make Clamps Outperform Generic Roof Clamps
| Factor | ARK Make by DFMHUB | Generic Imported Clamps |
|---|---|---|
| Designed for India | ✅ Yes | ❌ No |
| IEC 62305 Compatibility | ✅ Verified | ❌ Unclear |
| Roof Warranty Safe | ✅ Yes | ❌ Often void |
| Corrosion Testing | ✅ Indian & coastal | ❌ Limited |
| Load Testing | ✅ Documented | ❌ Rare |
| Technical Support | ✅ Local engineers | ❌ None |
Standards & Compliance
Applicable International & Indian Standards
| Standard | Description | Compliance |
|---|---|---|
| IEC 62305 | Lightning Protection Systems | ✅ Yes |
| IEC 62561 | LPS Components | ✅ Yes |
| IS/IEC 62305 | Indian adoption | ✅ Yes |
| ISO 9001 | Manufacturing quality | ✅ DFMHUB |
| RoHS | Material safety | ✅ Yes |
Testing & Quality Assurance
Tests Conducted on ARK Make Clamps
Mechanical pull-out testing
Slip resistance under thermal cycling
Salt spray corrosion testing
Electrical continuity resistance testing
Torque fatigue testing
All test reports are available for consultants & EPC approvals.
Industry-Wise Applications
Industrial
Manufacturing plants
Steel sheds
Cement factories
Automotive plants
Commercial
IT parks
Warehouses
Shopping malls
Airports
Infrastructure
Metro depots
Railway sheds
Ports
Power substations
Renewable Energy
Rooftop solar PV
Solar carports
Hybrid lightning-PV systems
India-Specific Use Cases
Mumbai & Chennai: Non-corrosive clamps for coastal exposure
Bengaluru & Hyderabad: Data center roof bonding
Delhi NCR: Thermal expansion-resistant clamping
Gujarat & Rajasthan: High wind & heat resistance
Manufacturer vs Trader Comparison
| Aspect | DFMHUB (Manufacturer) | Trader |
|---|---|---|
| Product Customization | ✅ Yes | ❌ No |
| Engineering Drawings | ✅ Provided | ❌ Not available |
| Compliance Documents | ✅ Complete | ❌ Partial |
| After-Sales Support | ✅ Dedicated | ❌ None |
| Bulk Project Supply | ✅ Scalable | ❌ Limited |
Services & Technical Support by DFMHUB
Pre-bid technical assistance
Clamp selection & BOQ support
Shop drawings & submittals
Site installation guidance
Third-party inspection coordination
Replacement & lifecycle support
Frequently Asked Questions (FAQs)
1. Does the clamp damage standing seam roofs?
No. ARK clamps are non-penetrative and torque-controlled to avoid deformation.
2. Is it suitable for lightning protection systems?
Yes. Fully compatible with IEC 62305 lightning protection designs.
3. Can it be used in coastal areas?
Yes. Designed for high corrosion environments like Chennai & Kochi.
4. Does it maintain roof warranty?
Yes. No drilling or welding ensures roof manufacturer warranty remains intact.
5. What conductor sizes are supported?
8 mm, 10 mm round conductors and flat strips (custom options available).
6. Is testing documentation available?
Yes. Mechanical, corrosion, and electrical test reports are provided.
7. Can clamps be customized?
Yes. DFMHUB offers project-specific clamp engineering.
8. Is it suitable for solar PV integration?
Absolutely. Ideal for PV cable routing and bonding.
9. What is the expected lifespan?
25+ years under normal operating conditions.
