Structural Earthing and Lightning Protection Installation & Testing By DFMHUB
Directly employed crews, method statements, height-safety compliance and instrument-traceable test records — delivered as one accountable scope alongside our manufacturing.
DFMHUB provides integrated Structural Earthing and Lightning Protection System installation and testing support for commercial buildings, industrial facilities, data centres, high-rise developments, factories, warehouses, PEB structures and infrastructure projects.
Our scope is focused on executing the approved design correctly at site and ensuring that the complete earthing and lightning protection network works as one coordinated system. Installation is carried out with attention to conductor routing, structural bonding, test points, earth-termination connections, material compatibility, fixing quality and coordination with civil, electrical, MEP, roofing and structural teams.
Approved Drawings → Site Coordination → Installation → Inspection → Testing → Documentation
Why Choose DFMHUB?
DFMHUB supports projects where installation quality, coordination and documented testing are critical.
Our installation and testing support includes:
Need Installation & Testing Support?
If your project already has an approved Structural Earthing and Lightning Protection System design, share the BOQ.
Six stages from survey to signed handover
Structure measurement, roof equipment mapping, facade route study and Wenner four-pin soil resistivity readings at multiple spacings.
IS/IEC 62305-2 calculation of R1 against tolerable risk, producing the required Lightning Protection Level and SPD class.
Rolling sphere or mesh modelling, down conductor spacing, electrode sizing, bonding schedule, SPD coordination and a full bill of materials.
ARK Make components produced to the approved BOM with IEC 62561 test certificates and batch traceability.

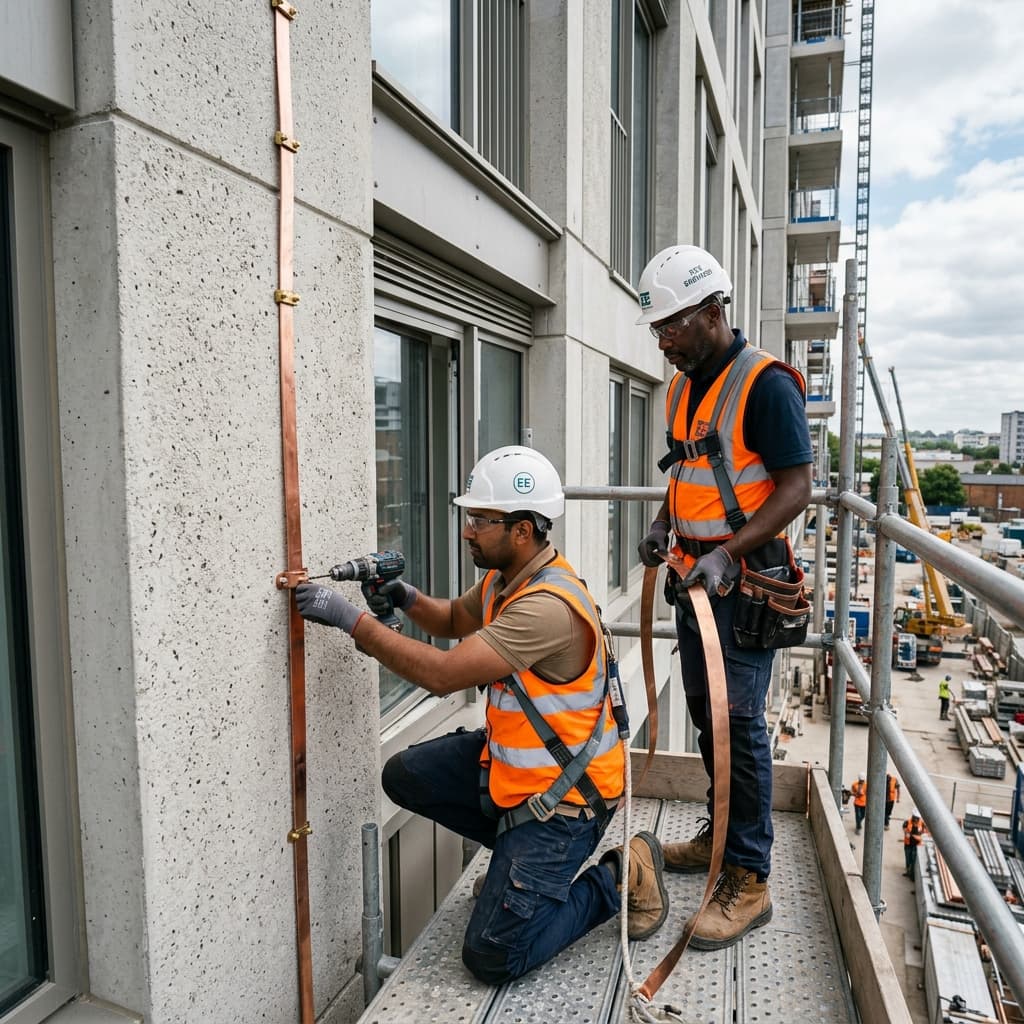

Air terminals, conductors and fixings; exothermic welds; earth pits and chambers; equipotential bonding; SPD wiring — by directly employed, height-certified crews.
Fall-of-potential earth resistance per electrode, continuity across every test link, as-built drawings and a compliance pack.
What our crews execute on site
Lightning protection installation
Air termination networks, down conductors, test links, strike counters and coordinated Type 1/2/3 SPD sets.
Structural earthing installation
Foundation rebar bonding, driven and deep-bore electrodes, grid mats, earth bars and enhancement compound backfill.
Exothermic welding
Certified operators for copper-to-copper, copper-to-rebar and cable-to-structure molecular joints.
Testing & certification
Earth resistance, soil resistivity, continuity and touch/step potential assessment with instrument-traceable reports.
Compliance audits
Gap analysis of existing systems against IS/IEC 62305, IS 3043 and NBC 2016 Part 8, with a prioritised remediation scope.
Annual maintenance
Scheduled inspection, re-testing and reporting to keep certification and insurance cover valid.
How work is controlled on site
Installation services — questions we get asked
What is structural earthing and lightning protection system installation?
Structural earthing and lightning protection installation involves creating a coordinated electrical path through the building's earthing, bonding and lightning protection network. The installation follows approved drawings and includes site coordination, inspection, testing and final documentation.
Does DFMHUB provide structural earthing and lightning protection installation?
Yes. DFMHUB provides integrated structural earthing and lightning protection installation and testing support based on approved project drawings, BOQ, technical specifications and consultant requirements.
Can DFMHUB install a system designed by another consultant?
Yes. DFMHUB can execute an approved structural earthing and lightning protection design prepared by the project's consultant, designer or EPC team.
What testing is carried out after installation?
Depending on project requirements, testing can include electrical continuity testing, earth resistance testing, visual inspection, test-joint inspection, connection verification and installation quality checks.
Why is continuity testing important in structural earthing?
Continuity testing helps confirm that designated earthing, bonding and lightning-current paths are electrically interconnected and that there are no unintended breaks in the installed network.
What is checked during a lightning protection system inspection?
An inspection typically checks conductor routing, connections, fixing quality, mechanical damage, corrosion, bonding points, test joints, accessibility and overall compliance with the approved installation drawings.
What is a test joint inspection?
A test joint inspection checks whether the test joint is correctly installed, accessible, mechanically secure and suitable for disconnecting the conductor during periodic inspection and testing.
Why should concealed earthing connections be inspected before concreting?
Once concrete is poured, many structural earthing connections become inaccessible. Pre-concreting inspection allows connection quality, conductor routing and continuity to be checked before the work is permanently concealed.
Does DFMHUB provide earth resistance testing?
Yes. Where required by the project scope, DFMHUB can carry out earth resistance testing using suitable test methods and calibrated instruments.
What quality checks are carried out during installation?
Quality checks can include conductor routing, connection tightness, fixing quality, material compatibility, bonding continuity, mechanical protection, test-point accessibility and general workmanship.
What documents are provided after installation and testing?
Depending on the agreed scope, handover documentation can include continuity test results, earth resistance readings, inspection records, installation photographs, marked-up drawings, as-built information and site quality checklists.
Is structural earthing and lightning protection treated as one integrated system?
They perform different functions, but their interfaces should be coordinated. DFMHUB executes them as an integrated site installation to maintain continuity, bonding and proper connection with the earth-termination system.
Which projects require structural earthing and lightning protection installation?
These systems are commonly used in data centres, industrial plants, high-rise buildings, factories, warehouses, commercial buildings, hospitals, IT campuses, PEB structures and infrastructure projects, subject to the approved engineering design.
When should structural earthing installation start?
Structural earthing installation should ideally begin during the foundation and RCC construction stages so that concealed connections can be installed and inspected before concreting.
Can DFMHUB inspect an existing earthing and lightning protection system?
Yes. Existing systems can be inspected for visible damage, corrosion, loose connections, continuity issues, test-joint condition and other installation concerns.
How can I get an installation quotation from DFMHUB?
Share the approved drawings, BOQ, project location, technical specifications, building type and current construction stage. DFMHUB can review the scope and provide an installation and testing proposal.
Send DFMHUB your:
The engineering team can review the project requirements and recommend the appropriate LPS design, ARK components and BOQ.
