Diagonal Clamp

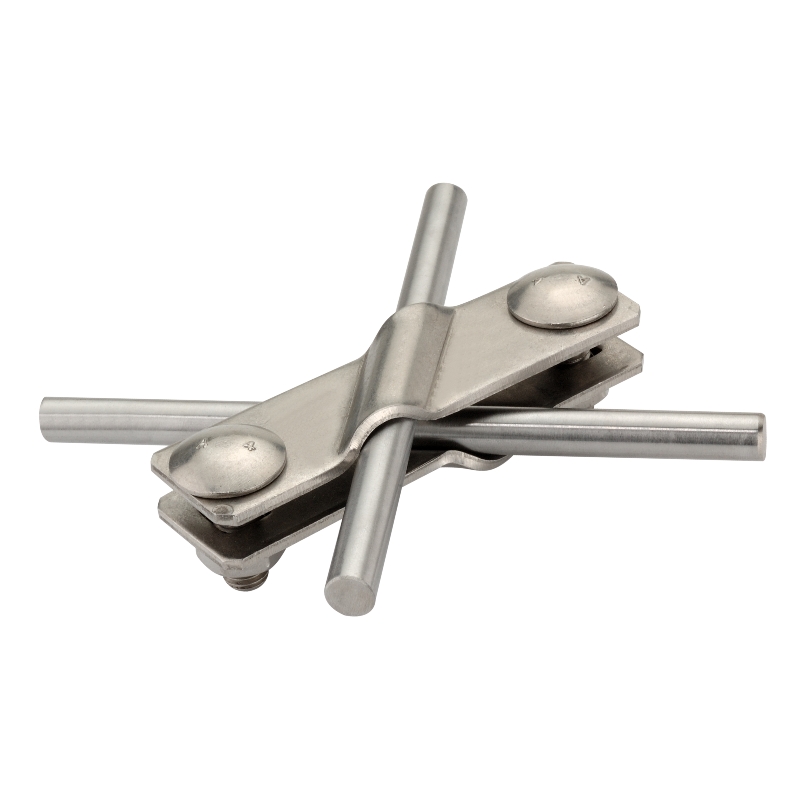

The Diagonal Clamp for Rd10 (ARK-DL10) is an ARK structural earthing component manufactured by DFMHUB in India. It connects a nominal Rd10 earthing conductor at an angled or diagonal interface in the approved structural bonding layout. It is intended for engineered earthing and bonding systems in commercial buildings, industries, data centres, infrastructure, high-rise developments and solar projects. A catalogue code gives procurement and site teams a controlled item to coordinate with the BOQ and approved drawings.
Connections are the most sensitive points in a concealed earthing network. A clamp must hold the intended members securely, provide the required contact area and use a material combination suitable for the concrete and service environment. It must also fit within reinforcement congestion without reducing cover, interfering with structural detailing or creating an unapproved site modification.

Mechanical joints should use the specified fasteners and installation torque. Contact surfaces must be prepared as required, and the connected members should not be forced into alignment. Because many structural joints become inaccessible after casting, inspection photographs, location records and continuity results are essential evidence for handover.

DFMHUB positions ARK as a manufacturer-led system rather than a collection of unrelated trading items. Product drawings, material details, fabrication or assembly steps, dimensional inspection and order-specific documentation can be coordinated before supply. The final submittal should state the exact dimensions, material grades, joining method, finish, tolerances and test evidence required for the selected configuration. This prevents broad marketing claims from replacing project engineering.

Key product-page benefits include:
• Designed around nominal Rd10 conductor
• Supports approved angled connection geometry
• Bolted joint is inspectable before casting
• Reduces improvised bending and site-made links
Align the conductors without forcing the clamp or creating a sharp unsupported bend. Tighten with the specified hardware and torque, then photograph and continuity-check concealed joints before casting.

Selection note: Confirm conductor size, mating member, permitted connection angle, material compatibility, bolt torque, available clearance and whether the joint will remain accessible. Coordinate the component with the structural engineer, electrical consultant, MEP contractor and earthing designer before concrete work proceeds.
For a quotation, provide product code ARK-DL10, quantity, material and dimensions, conductor/rebar interfaces, drawings, project location, inspection requirements and delivery schedule. DFMHUB can then align manufacture, packing and documentation with the approved requirement.
